SkyLume ER -- Vertical Daylight Round
SkyLume ER -- Vertical Daylight Round
A circular portal to the sky.
Round architectural porthole with Rayleigh scattering optics and 1.5-degree vertical beam -- delivering concentrated, straight-down daylight through a circular window to infinite blue depth.
The Concept

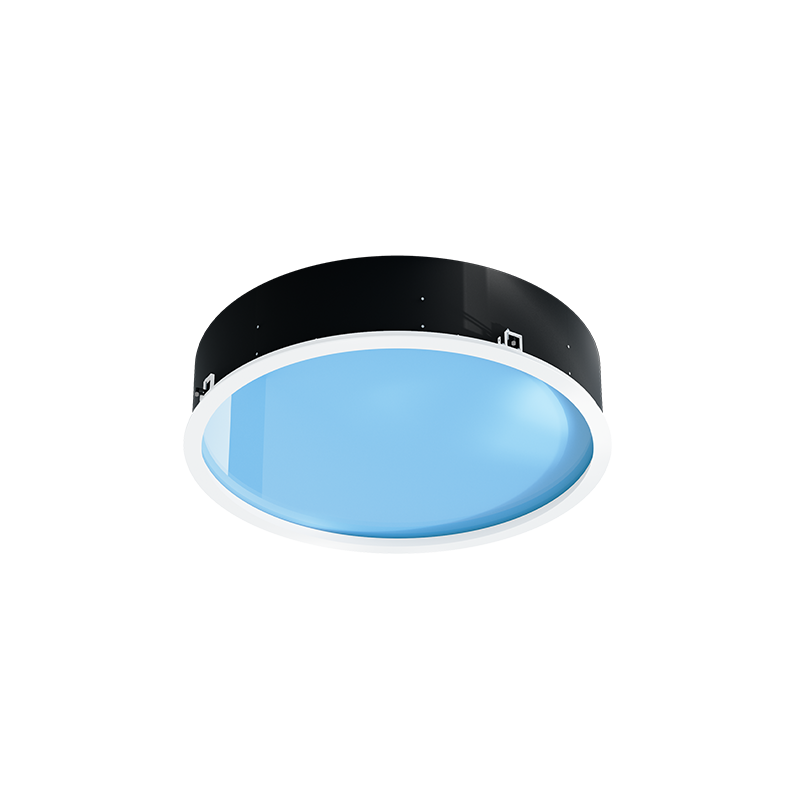

The SkyLume ER is a circular portal to the sky -- an architectural porthole that brings the infinite depth of open atmosphere into any interior space. Where rectangular panels follow conventional ceiling grid logic, the ER breaks free with a bold round form factor that draws the eye upward and holds it.
Inside the circular housing, Rayleigh scattering nano-diffusion optics reproduce the physics of Earth's atmosphere. Short-wavelength blue light scatters through nano-scale particles suspended in an optical medium, generating a gradient of sky that appears to extend infinitely beyond the surface. The effect is not a printed image or a blue LED glow -- it is optically generated sky with genuine perceived depth.
Available in two diameters, the ER300 delivers a compact 500mm visible sky area within a 600mm outer frame, while the ER600 expands to an 800mm sky view within a 900mm housing. Both models feature a tight 1.5-degree vertical beam angle that projects concentrated daylight straight down, making the ER ideal for focused overhead illumination above dining tables, reception desks, reading areas, and architectural feature points.
Key Features
- Circular Porthole Design -- Round form factor creates a dramatic architectural statement. Available in 600mm and 900mm outer diameters with 500mm and 800mm visible sky areas respectively.
- Rayleigh Scattering Optics -- Nano-particle diffusion reproduces the physics of a real sky. The same phenomenon that colors our atmosphere now fills your ceiling with infinite blue depth.
- 1.5-Degree Vertical Beam -- Ultra-narrow beam angle delivers concentrated, straight-down daylight for precise overhead illumination without lateral scatter.
- CRI 95 Ra -- Colors render with exceptional accuracy. Skin tones, fabrics, food, and artwork appear exactly as they would under natural sunlight.
- Tunable White (2,100K--7,500K) -- Full CCT range from warm amber evening to crisp midday blue. Simulate sunrise, golden hour, or clear-sky noon.
- High Power (150W--500W) -- ER300 delivers 150W of concentrated daylight; ER600 provides up to 500W for large-space applications requiring serious luminous output.
- Smart Control -- BLE Mesh 5.0, DALI, 0-10V, and RF remote. Tuya platform integration for Google Home and Amazon Alexa voice control and scheduling.
- Flicker-Free LED -- Eye-safe operation certified for extended exposure in workplaces, healthcare environments, and residential settings.
Ideal Spaces
Dining Rooms / Reception Areas / Reading Nooks / Hotel Lobbies / Spa Treatment Rooms / Gallery Accents / Architectural Feature Points / Home Offices
Technical Specifications
| Model | SkyLume ER (Vertical Daylight Round) |
| ER300 Dimensions | 600mm outer diameter x 220mm deep |
| ER300 Cutout | 585mm diameter |
| ER300 Visible Sky | 500mm diameter |
| ER300 Power / Weight | 150W / 12 kg |
| ER600 Dimensions | 900mm outer diameter x 220mm deep |
| ER600 Cutout | 885mm diameter |
| ER600 Visible Sky | 800mm diameter |
| ER600 Power / Weight | 500W / ~25 kg |
| Beam Angle | 1.5 degrees (vertical) |
| Color Temperature | 2,100K -- 7,500K (Tunable White) |
| CRI | 95 Ra |
| Input Voltage | 100-240V AC (50/60Hz) |
| Control | BLE Mesh 5.0 / DALI / 0-10V / RF Remote |
| Smart Platform | Tuya (Google Home, Amazon Alexa) |
| Materials | Aluminum Alloy + PMMA Diffuser |
| IP Rating | IP20 |
| Working Life | >15,000 hours |
| Certifications | CE, UL, FCC, RoHS |
What is in the Box
- 1x SkyLume ER Round LED Panel
- 1x Recessed Mounting Ring + Spring Clips
- 1x LED Driver / Power Supply
- 1x Circular Cutout Template
- 1x RF Remote Control
- 1x Installation Guide
Installation
Step 1: Use the included circular template to mark and cut the ceiling opening to the correct diameter (585mm for ER300, 885mm for ER600).
Step 2: Install the LED driver above the ceiling void and connect it to mains power supply.
Step 3: Insert the ER panel into the cutout. Spring clips engage automatically to grip the ceiling material and secure the unit flush.
Step 4: Connect the low-voltage cable from driver to panel. Power on and configure color temperature via the RF remote or Tuya app.
Frequently Asked Questions
Why choose a round skylight over a square one?
Round skylights create a distinctive architectural focal point that breaks the monotony of rectangular ceiling grids. The circular form naturally draws the eye and feels more like a genuine portal to the sky. In design terms, the round shape adds organic softness to angular interiors, making it ideal for residential dining areas, hotel lobbies, and spa environments where a more natural aesthetic is desired.
What is the cutout diameter required?
The ER300 requires a 585mm circular cutout for its 600mm outer diameter housing. The ER600 requires an 885mm cutout for its 900mm housing. Both models include a precision circular cutting template to ensure an accurate opening. Minimum ceiling void depth is 220mm to accommodate the panel body and driver.
How heavy is the ER panel?
The ER300 weighs approximately 12 kg, and the ER600 weighs approximately 25 kg. Both are designed for secure ceiling mounting with integrated spring clips. For the heavier ER600, we recommend verifying that ceiling joists or support structure can handle the load. Professional installation is advised for drywall ceilings with the larger model.
Can the ER be surface-mounted instead of recessed?
The ER is primarily designed for recessed installation. However, an optional surface-mount adapter ring is available that allows the panel to sit flush against the ceiling surface without a cutout. Contact our support team for the surface-mount accessory. Note that surface mounting adds approximately 230mm of visible depth below the ceiling plane.
What makes the 1.5-degree beam angle special?
A 1.5-degree beam angle is exceptionally narrow -- it concentrates all light output into a tight vertical column directly below the panel. This creates a dramatic pool of daylight on the surface beneath, similar to the way sunlight enters through a real round skylight at midday. The narrow angle also reduces light spill onto surrounding surfaces, making the ER ideal for accent and task lighting applications.
Does it support circadian lighting schedules?
Yes. Through the Tuya smart platform, you can program automated sunrise-to-sunset schedules that gradually shift color temperature from warm 2,100K morning tones through 7,500K midday daylight and back to warm evening amber. DALI integration also supports building-level circadian automation in commercial environments.
What warranty is included?
Every SkyLume ER panel ships with a 2-year manufacturer warranty covering defects in materials and workmanship. LED drivers are warranted separately for 2 years. With a rated lifespan exceeding 15,000 hours, the panels are designed for years of reliable daily use.
How does SkyLume compare to CoeLux or other artificial skylights?
SkyLume panels use the same core Rayleigh scattering principle as high-end systems like CoeLux, but in a significantly thinner, lighter, and more affordable form factor. While CoeLux systems can cost tens of thousands of dollars and require deep ceiling voids, SkyLume achieves a compelling sky effect at a fraction of the price with minimal installation requirements. For the vast majority of residential and commercial applications, SkyLume delivers an exceptional sky simulation.
